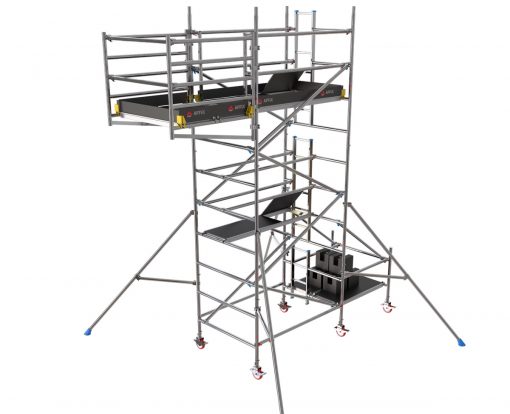

Cantilever Mobile Tower

This tower is ideal for enabling a user to access and work over almost any type of obstructions. This tower is built over our regular double width tower with a maximum working height of 9.3 Mtrs..

Model-MACL

Tower standard BS1139-6:2014
Platform length 2.0 Mtr and 2.5 Mtr
Cantilever Length 1.4 Mtr
Tower width 1.35 Mtr
Tower Length 2.0 Mtr and 2.5 Mtr
Min Platform Height 2.3 Mtr
SWL of Tower 750 Kgs
SWL of Platform 250 Kgs
Joint type Full 360° welded frame joint connections

Download Product Brochure Download Assembly Manual

Component Matrix

MACL Series Components Table

2.0 Mtr Length MACL 320 420 520 620 720 820
2.5 Mtr Length MACL 325 4.25 525 625 725 825
Tower Height in Mtrs 3.3 4.3 5.3 6.3 7.3 8.3
Working Height in Mtrs 4.3 5.3 6.3 7.3 8.3 9.3
Platform Height in Mtrs 2.3 3.3 4.3 5.3 6.3 7.3
Weight (2.0/2.5 Mtr Length) in Kgs 169/177 198/219 216/237 246/271 266/291 296/325
Counterweight (2.0/2.5 Mtr Length) in Kgs 190/230 200/240 210/250 220260 230/270 240/280
Components Components Specs
Ladder Frame FL20135 2.0 Mtrs 0 2 2 3 3 4
Span Frame FS20135 2.0 Mtrs 1 1 1 2 2 3
Walkthrough Frame CFW20135 2.0 Mtrs 1 1 1 1 1 1
Ladder Frame Mini FL10135 1.0 Mtr 1 0 1 0 1 0
Span Frame Mini FS10135 1.0 Mtr 1 0 1 0 1 0
Cantilever Frame FC10140 1.4 Mtrs 2 2 2 2 2 2
Cantilever Horizontal Braces CBH140 1.4 Mtrs 2 2 2 2 2 2
Cantilever Platform CPF140 1.4 Mtrs 2 2 2 2 2 2
Counterweight Frame FC10135 1.4 Mtrs 1 2 2 2 2 2
Counterweight Platform CPF140 1.4 2 2 2 2 2 2
Counterweight Horizontal CBH140 1.4 2 2 2 2 2 2
Counterweight Diagonal BD200/250 2.2/2.7Mtrs 2 2 2 2 2 2
Caster Whee CW200 8 inches 4 4 4 4 4 4
Adjustable Jack JA500 0.5 Mtrs 4 4 4 4 4 4
Horizontal Braces BH200/250 2.0/2.5 Mtrs 6 10 10 14 14 18
Diagonal Braces BD200/250 2.2/2.7 Mtrs 4 6 8 10 12 14
Stabilizer ST200 2.0 Mtrs 4 4 0 0 0 0
Stabilizer ST300 3.0 Mtrs 0 0 4 4 0 0
Stabilizer ST450 4.5 Mtrs 0 0 0 0 4 4
Stabilizer ST600 6.0 Mtrs 0 0 0 0 0 0
Platform Trapdoo PT200/250 2.0/2.5 Mtrs 1 2 2 3 3 4
Platform Fixed PF200/250 2.0/2.5 Mtrs 1 1 1 1 1 1
Toe Board BT200/250 Set 1 1 1 1 1 1
