Not to be used near Electricity

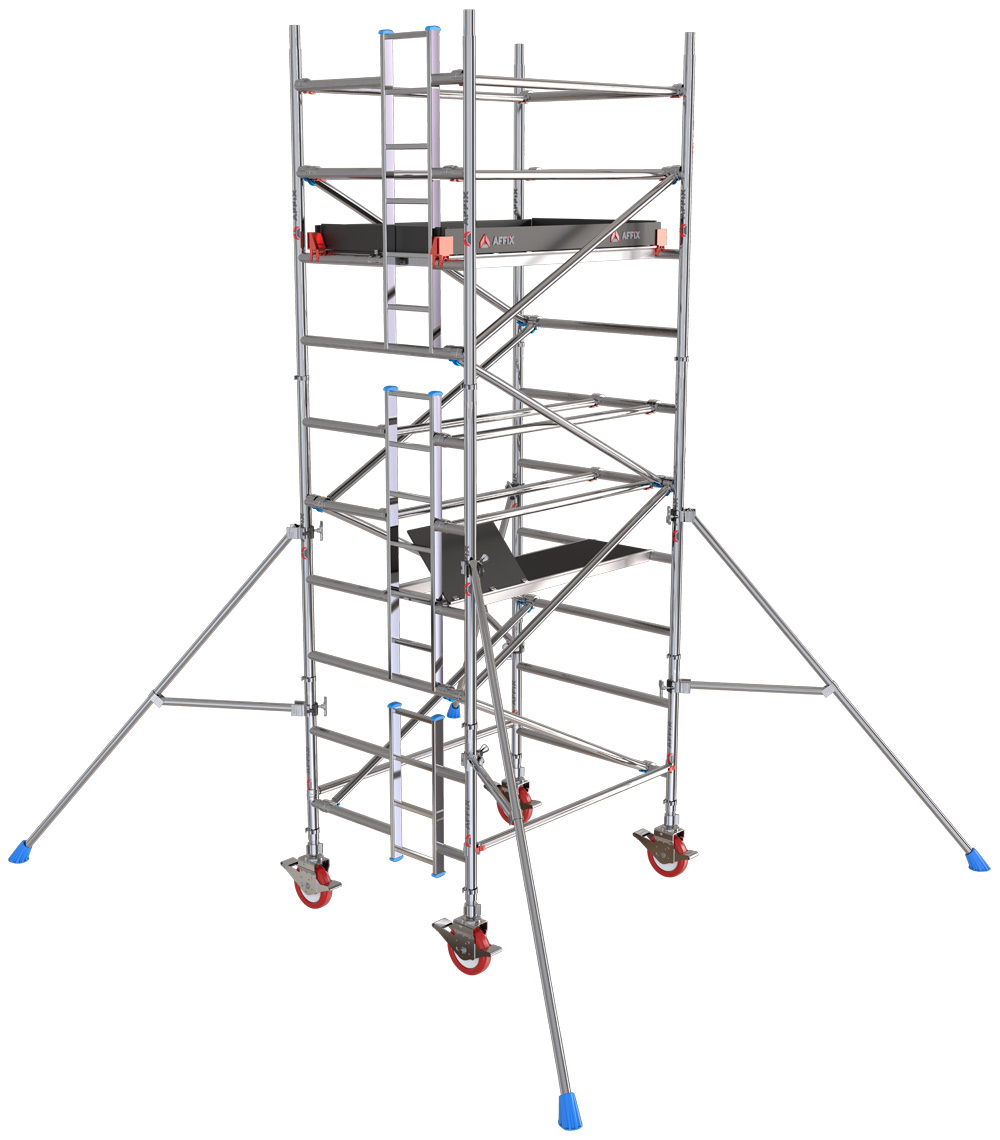

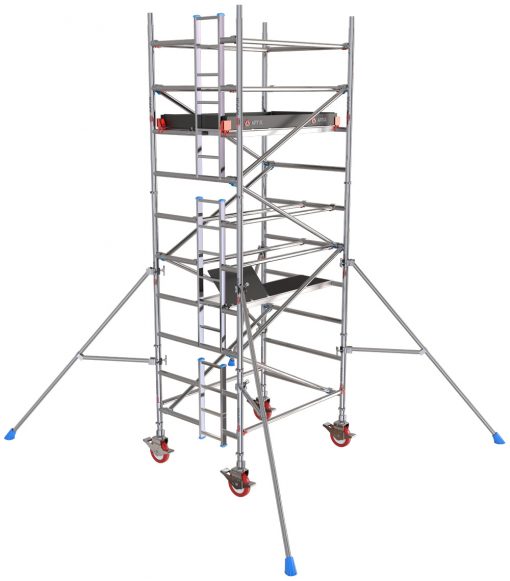

Double Width Mobile Tower

This is the most versatile tower across the segment and ideal for working in normal applications. No separate ladders required, it has integral vertical ladder, class D for 3T method access. No separate guardrail frames required Just install the working platform on the third rung from the top of the tower and the required guardrail height will be achieved.

Model-MADW

Tower standard EN 1004-1:2020
Platform Length 2.0 Mtr and 2.5 Mtr
Tower Width 1.35 Mtr
Tower Length 2.0 Mtr and 2.5 Mtr
Min Platform Height 1.2 Mtr
SWL of Tower 750 Kgs
SWL of Platform 250 Kgs
Joint Type Full 360° welded frame joint connections

Download Product Brochure Download Assembly Manual

This is most versatile tower which takes up to 15m height indoor & 10m outdoor.Maximum load distributed is 250kg per platform & evenly distributed is 500kg.

Component Matrix

MADW Series Components Table

2.0 Mtr Length
MADW
220
320
420
520
620
720
820
920
1020
1120
1220
1320
2.5 Mtr Length
MADW
225
325
425
525
625
725
825
925
1025
1125
1225
1325
Tower Height
in Mtrs
2.2
3.2
4.3
5.3
6.3
7.3
8.3
9.3
10.3
11.3
12.3
13.3
Working Height
in Mtrs
3.2
4.2
5.3
6.3
7.3
8.3
9.3
10.3
11.3
12.3
13.3
14.3
Platform Height
in Mtrs
1.2
2.2
3.3
4.3
5.3
6.3
7.3
8.3
9.3
10.3
11.3
12.3
Weight
(2.0/2.5 Mtr Length)
in Kgs
79/86
106/111
140/152
157/168
188/204
207/222
238/259
258/277
288/314
3032/326
333/363
347/376
Components
Code
Specs
Ladder Frame
FL20135
2.0 Mtrs
1
1
2
2
3
3
4
4
5
5
6
6
Span Frame
FS20135
2.0 Mtrs
1
1
2
2
3
3
4
4
5
5
6
6
Ladder Frame Mini
FL10135
1.0 Mtrs
0
1
0
1
0
1
0
1
0
1
0
1
Span Frame Mini
FS10135
1.0 Mtrs
0
1
0
1
0
1
0
1
0
1
0
1
Caster Wheel
CW150
6 Inches
4
4
0
0
0
0
0
0
0
0
0
0
Caster Wheel
CW200
8 Inches
0
0
4
4
4
4
4
4
4
4
4
4
Adjustable Jack
JA500
0.5 Mtrs
4
4
4
4
4
4
4
4
4
4
4
4
Horizontal Braces
BH200/250
2.0/2.5 Mtrs
6
6
10
10
14
14
18
18
22
22
26
26
Diagonal Braces
BD200/250
2.2/2.7 Mtrs
2
4
6
8
10
12
14
16
18
20
22
24
Stabilizer
ST200
2.0 Mtrs
4
4
0
0
0
0
0
0
0
0
0
0
Stabilizer
ST300
3.0 Mtrs
0
0
4
4
4
0
0
0
0
0
0
0
Stabilizer
ST450
4.5 Mtrs
0
0
0
0
0
4
4
0
0
0
0
0
Stabilizer
ST600
6.0 Mtrs
0
0
0
0
0
0
0
4
4
4
4
4
Platform Trapdoor
PT200/250
2.0/2.5 Mtrs
1
1
2
2
3
3
4
4
5
5
6
6
Platform Fixed
PF200/250
2.0/2.5 Mtrs
1
1
1
1
1
1
1
1
1
1
1
1
Toe Board
BT200/250
Set
1
1
1
1
1
1
1
1
1
1
1
1
