Can be used near Electricity

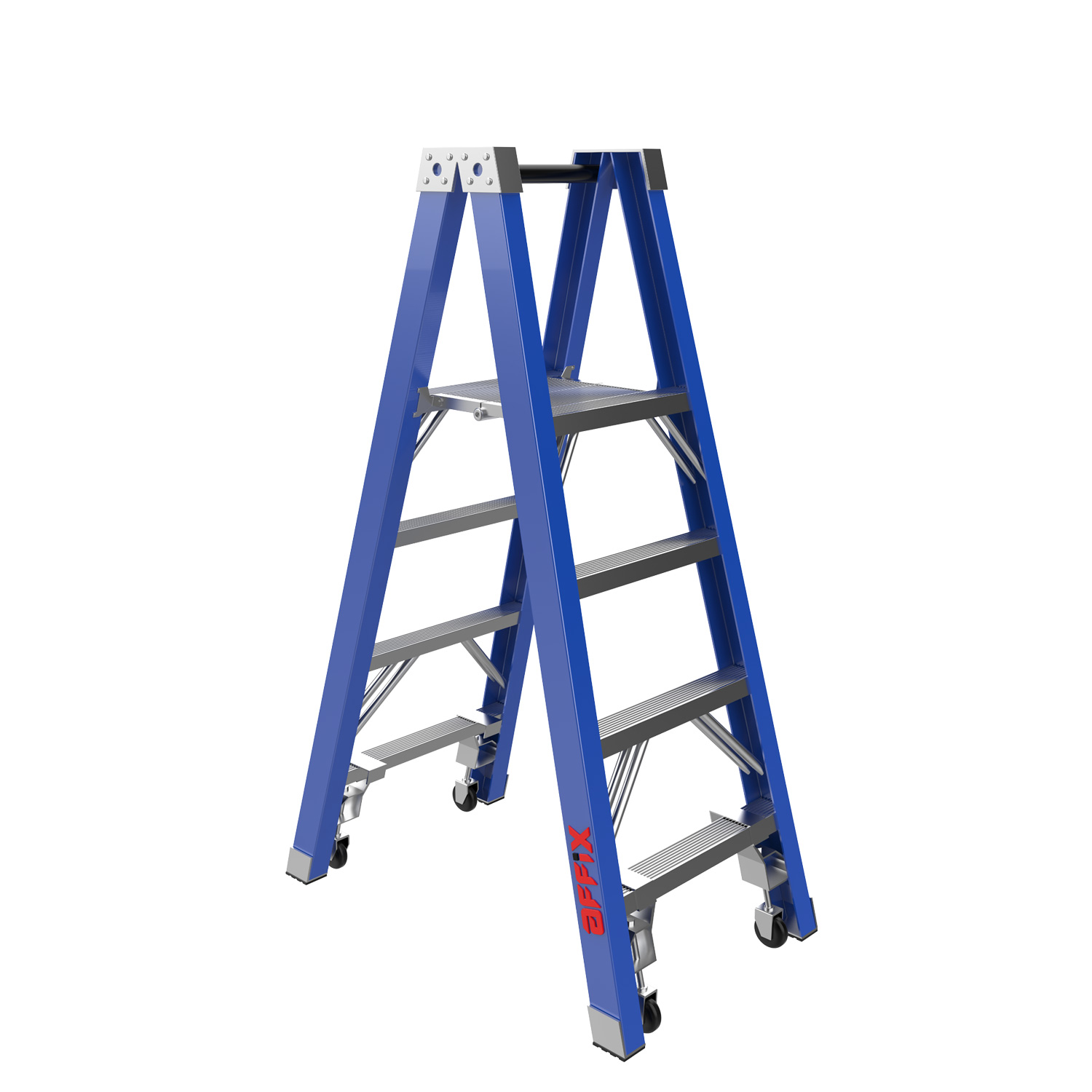

FRP Twin Stepladder Mobile With Platform



Model-SF0122H
European Standard EN131
Class Professional
Usage Rigorous Use
Duty Heavy
Material FRP
Max Load Capacity 170 Kgs
Max Working Height 4.89 Mtr

Download Product Brochure

Request for Quote

Specifications

Twin Stepladder Mobile (with Platform) | Professional | Rigorous Use

Model No. SF0122H

Product Code Steps Weight Length Top Width Base Width Platform Height Working Height
SF0122H04 4 11.47 1.76 0.34 0.57 0.93 2.93
SF0122H05 5 13.07 2.06 0.34 0.60 1.17 3.17
SF0122H06 6 14.87 2.36 0.34 0.63 1.42 3.42
SF0122H07 7 16.67 2.66 0.34 0.66 1.66 3.66
SF0122H08 8 18.47 2.96 0.34 0.69 1.91 3.91
SF0122H09 9 21.47 3.26 0.34 0.72 2.15 4.15
SF0122H10 10 24.27 3.56 0.34 0.74 2.40 4.40
SF0122H12 12 28.07 4.16 0.34 0.80 2.89 4.89
All measurements in Mtr and weight in Kgs (Approx) Horizontal/Lateral Stabilizers provided with models above 3 Mtr
