Not to be used near Electricity

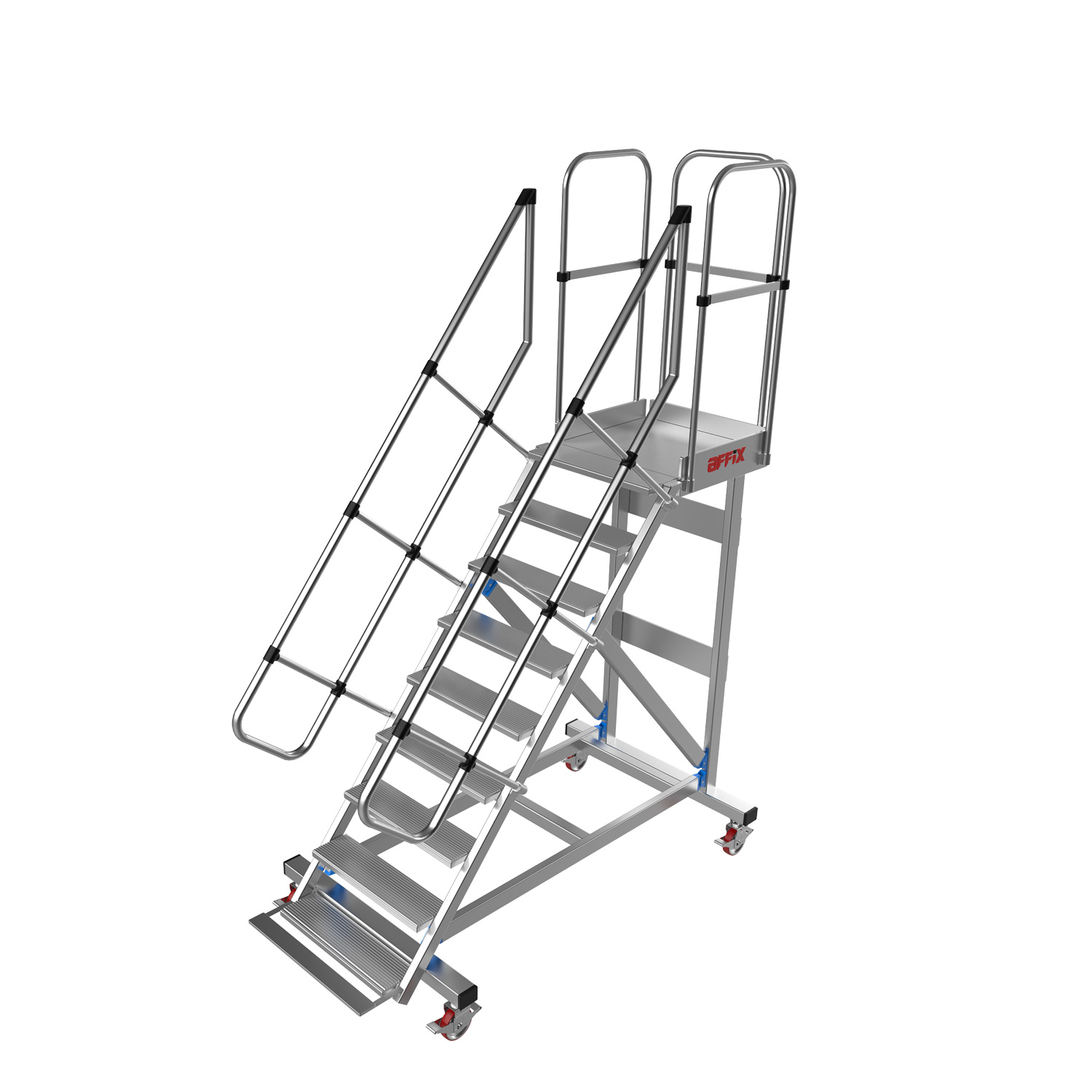

Mobile Platform Stairs/ Stepladder

Affix offers you a work platform which is mobile, convenient, safe, easy to maneuver and best suitable where you need to frequently hange working positions. All our solutions are certified by TUV and designed to comply with EN 14122

Features:

  • Available in two different inclination angles – 45° for a convenient access and 60° for constrained spaces.
  • Available steps width 600mm and 800mm.
  • Available Platform heights is 600mm – 2100mm.
  • Serrated anti-skid steps and platform surface.
  • Optional barrier or swing door for guard rail.
  • Removable modular guardrails and handrails.
  • The overall length varies between 1110mm – 2850mm (45°).
  • The overall length varies between 1500mm – 3250mm (60°).
  • Available platform width: 600mm x 800mm 800mm x 800 mm



Model-SAA0124

Compliant with EN14122
Class Professional
Material Aluminium
Max Load Capacity 300 Kgs
Max Working Height 4.35 Mtr

Download Product Brochure

Specifications

Mobile Platform Stairs/ Stepladder | Professional

Model No. SAA0124

All measurements in Mtr and weight in Kgs (Approx)

Product Code Steps Degree of Inclination Platform Height Total Height Width Platform Length Total Length (45°/60°,0.6 Mtr Platform) Total Length (45°/60°,1.0 Mtr Platform) Steps Width Working Height
SAA012403 3 45°/60° 0.60 1.70 0.60/0.80 0.60-1.00 2.10/1.51 2.50/1.91 0.15/0.25 2.60
SAA012404 4 45°/60° 0.85 1.95 0.60/0.80 0.60-1.00 2.60/1.81 3.00/2.21 0.15/0.25 2.85
SAA012405 5 45°/60° 1.10 2.20 0.60/0.80 0.60-1.00 3.10/2.11 3.50/2.51 0.15/0.25 3.10
SAA012406 6 45°/60° 1.35 2.45 0.60/0.80 0.60-1.00 3.60/2.42 4.00/2.82 0.15/0.25 3.35
SAA012407 7 45°/60° 1.60 2.70 0.60/0.80 0.60-1.00 4.10/2.72 4.50/3.12 0.15/0.25 3.60
SAA012408 8 45°/60° 1.85 2.95 0.60/0.80 0.60-1.00 4.60/3.00 5.00/3.42 0.15/0.25 3.85
SAA012409 9 45°/60° 2.10 3.20 0.60/0.80 0.60-1.00 5.10/3.32 5.50/3.72 0.15/0.25 4.10
SAA012410 10 45°/60° 2.35 3.45 0.60/0.80 0.60-1.00 2.85-3.25 0.15/0.25 0.15/0.25 4.35
